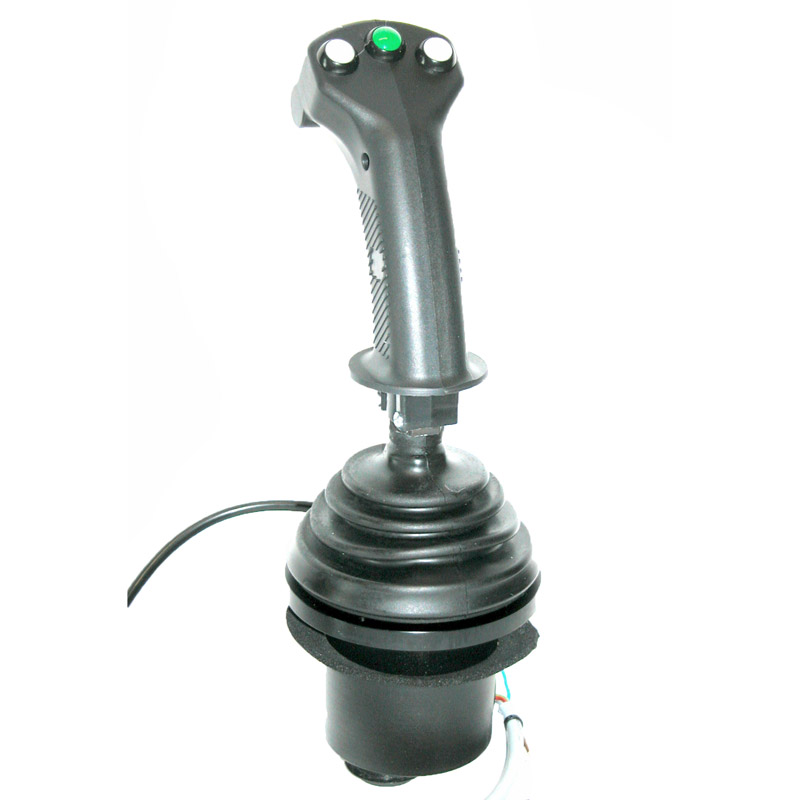

Magnetic –inductive joystick.

Realized using a single axis rectangular limiter plate(TJ0) or single or multi axis circular limiter plate (TJ1-TS).
Both with analogical and digital output . Different hand grips with various positions and button colours are available to satisfy customer requests.
Its innovative design with the complete absence of electromechanical or sneaking contacts for the analogical output and the realization of electronics with Surface Mount Device (SMD). Created to withstand heavy use over time.

TECHNICAL FEATURES

Voltage range: 9.6V to 28.8V. Maximun quiscent currente: 40mA For output voltage see chart (voltage regulation).

For the on-off outputs see technical charts.

GENERAL FEATURES

All measurements are expressed in millimetres. The characteristics are not guaranteed. IPC reserves the right to modify these products without prior notice. When order ask for confirmation of measurements.



Joystick mit magnetisch-induktiver

Signalerzeugung, einachsig mit rechteckiger Befestigungsplatte (TJ0) oder ein –oder mehrachsig mit runder Befestigungsplatte (TJ1-TS). Beide mit digitalem und analogem Ausgang. Es sind mehrere Griffe mit verschiedenen Positionen und Knopffarben erhältlich, um die vielfältigen Anforderungen zu erfüllen.
Innovatives Konzept , völlig ohne elektromechanische oder schleifende Kontakte für die analogen Ausgänge, SMD –Technik und geschützte Elektronik. Alle mechanischen Komponenten sind für eine hohe Labensdauer unter schweren Einsatzbedingungen ausgelegt.

TECHNISCHE MERKMALE

Ausgangspannung : 9.8V mit 28.8V Maximale Strom: 40mA
Für die Ausgangspannung sehen Sie die Tabelle (Regelungskurve).

Für die ein-aus Ausgänge sehen Sie die technischen Unterlagen

ALLGEMEINE MERKMALE

Alle Maße werden in Millimeter angezeigt. Die vorliegenden Angaben sind nicht bindend. iPC behält sich technische Änderungen vor ohne Mitteilung. Bei Bestellung, fordern Sie bitte die Maße an.

TJ frizionato

FILL OUT THE FORM FOR CUSTOM REQUESTS

DATA SHEET

Are you looking for a customized solution?

We offer customized solutions for every need, quickly and even for small quantities!

RULES OF USE AND MANUAL

IPC products are control devices and cannot be used with a safety function. The safety function must be implemented with suitable devices.

The use of the control must be allowed only to personnel trained in its use and that of the controlled equipment.
