TR 1 Potentiometric axis

VERSIONS AVAILABLE

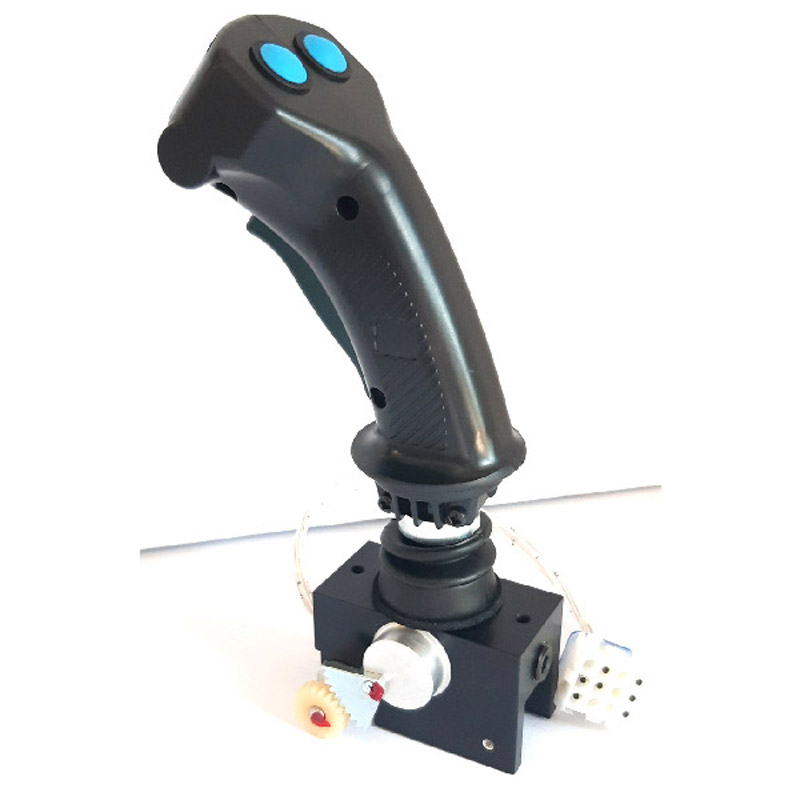

TR 338SY102001 (TR101) without microswitches.

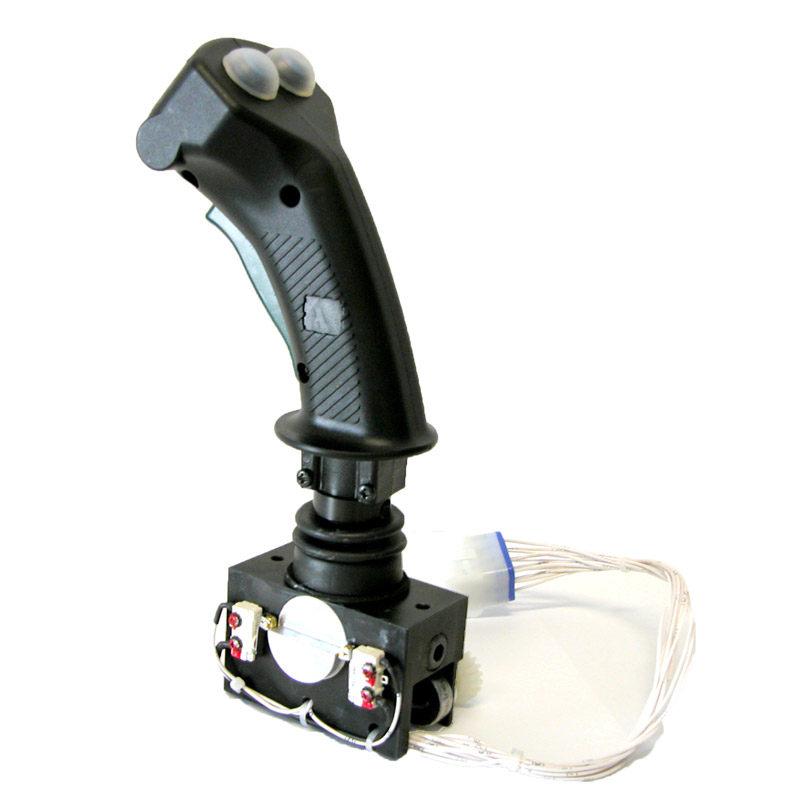

TR 359SY102001 (TR110) with direction microswitches and buttons with protective silicone cap.
The joysticks in this family can be supplied with multiple buttons – up to a maximum of 5 controls – or without buttons, in this case only performing the FORWARD/BACKWARD function.

NOTE:
For ease of assembly, both models of the handgrip are removable and detachable with 6-pin connector. For this reason, both the base and handgrip can be supplied separately, at the customer’s request.
All versions always come with the MATE-N-LOK connector supplied, or one of the customer’s choice.



TR GRIP

TR DIMENSIONS

DATA SHEET

Are you looking for a customized solution?

We offer customized solutions for every need, quickly and even for small quantities!

RULES OF USE AND MANUAL

IPC products are control devices and cannot be used with a safety function. The safety function must be implemented with suitable devices.

The use of the control must be allowed only to personnel trained in its use and that of the controlled equipment.
